Silo Top Dust Collector Replacement Filters for Cement, Grain and Bulk Material Silos
Silo top dust collectors are widely used to control dust released during the filling and handling of bulk materials. They are commonly installed on cement silos, concrete batching plants, grain silos and other bulk material storage systems.
DFC Filtration supplies replacement filter cartridges and filter elements for silo top dust collectors, with solutions available for different equipment designs, dimensions and operating conditions.

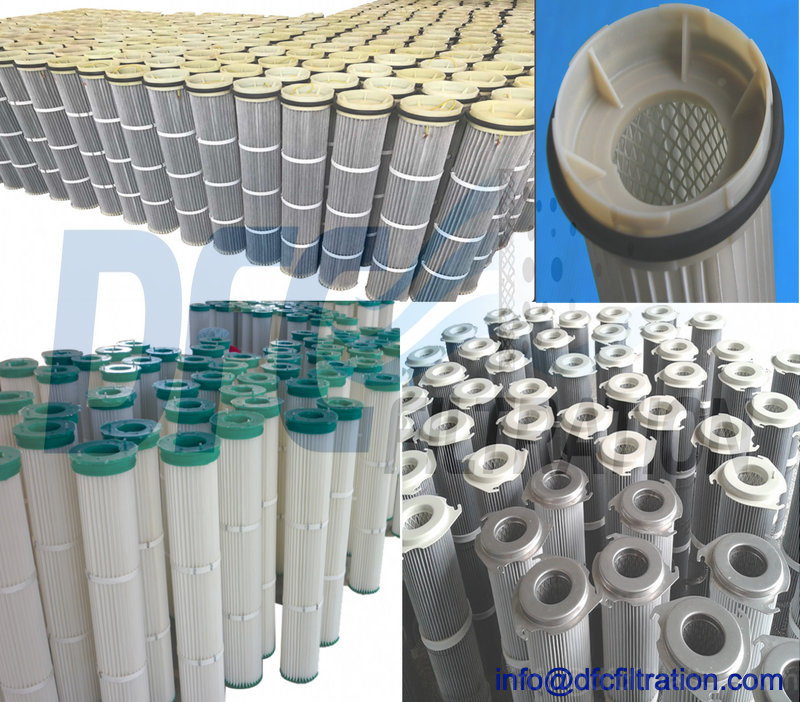

Replacement Filters for Silo Top Dust Collectors
A silo top dust collector needs an effective filtration system to capture fine dust while allowing clean air to pass through the filter media.
Our replacement filters can be used for silo top dust collection applications where the original filter elements need to be replaced due to:
- High pressure drop
- Filter media wear
- Reduced dust collection efficiency
- Damage to the filter element
- Routine maintenance and replacement
- Upgrading the filtration media
Replacement filter solutions can be supplied according to the original filter dimensions, construction and application requirements.
Applications
Silo top dust collectors are used across a wide range of industries, including:
Cement & Concrete
- Cement silos
- Concrete batching plants
- Cement plants
- Fly ash and mineral powder silos
- Dry mortar and construction material storage
Grain & Agricultural Materials
- Grain silos
- Flour and grain processing
- Feed mills
- Agricultural bulk material storage
Other Bulk Materials
- Chemical powders
- Mineral powders
- Lime and gypsum
- Food powders
- Other dry bulk materials
The required filter media and construction can vary depending on the material being handled, dust characteristics, temperature, humidity and cleaning system.
Replacement Options for SILOTOP® Dust Collectors

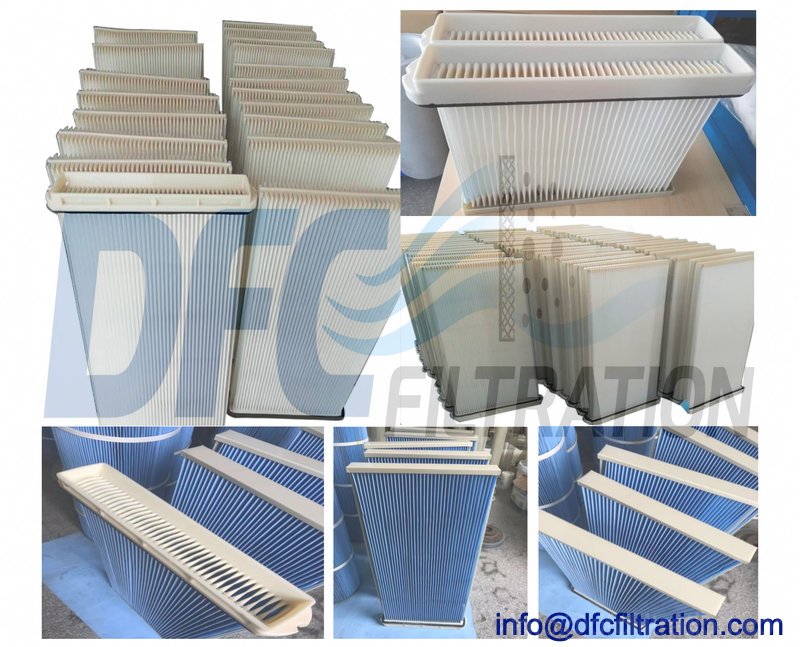

WAM SILOTOP ZERO SILO VENTING FILTERS Flat panel FILTER:
DFC Filtration provides replacement filter solutions suitable for silo top dust collectors, including applications using equipment from WAMGROUP and its SILOTOP® product range.
Replacement filters can be manufactured based on the original filter specifications or customer requirements.
When requesting a replacement, it is helpful to provide:
- Original equipment or filter model
- Filter dimensions
- Filter media
- Top and bottom configuration
- Sealing or mounting details
- Operating temperature
- Dust characteristics
- Cleaning method
Photos of the original filter and the equipment nameplate can also help us identify the appropriate replacement.
Customized Silo Top Filter Solutions
Not every silo dust collection application operates under the same conditions.
DFC Filtration can provide customized filter solutions based on the customer's equipment and operating requirements. Filter dimensions, filter media, construction and other specifications can be considered according to the application.
Available filter media may include polyester, nanofiber and other filtration materials selected according to the dust and operating conditions.
For applications involving fine or difficult-to-filter dust, higher-efficiency filtration media can also be considered to help achieve the required filtration performance while maintaining suitable airflow and pressure drop.
Choosing the Right Replacement Filter
The correct replacement filter should not be selected by dimensions alone.
Important factors include:
1. Dust type – cement, grain, mineral, chemical or food powder can require different filtration characteristics.
2. Operating temperature – temperature affects the selection of filter media and construction.
3. Dust concentration – high dust loading can influence filter loading and cleaning performance.
4. Cleaning system – pulse-jet cleaning pressure and frequency should be considered when selecting the filter.
5. Installation dimensions – the replacement filter should properly match the existing collector.
Providing the original filter information allows us to recommend a more suitable replacement solution.
Need a Replacement Silo Top Filter?
If you are looking for replacement filters for a silo top dust collector, send us the original filter dimensions, photos, model information or equipment nameplate.
DFC Filtration can review the requirements and provide a replacement filter solution for cement, concrete, grain and other bulk material silo applications.
Note: SILOTOP® and WAMGROUP® are trademarks of their respective owners. DFC Filtration replacement filters are independently manufactured and are not affiliated with or endorsed by the original equipment manufacturer.
