Industrial Dust Collector Replacement Filter Cartridges: Oval, Triangular and Custom Designs
Industrial dust collection systems use a wide range of filter cartridge designs. While cylindrical cartridges are common, many industrial collectors also use oval, triangular, square, rectangular, and other specially configured filter elements.
When a replacement filter is required, the correct solution is not determined by shape alone. Dimensions, sealing arrangement, mounting configuration, filter media, filtration area, and operating conditions all need to be considered.
DFC Filtration supplies replacement filter cartridges for a wide range of industrial dust collection applications, including standard, non-standard, and custom configurations.
Oval Filter Cartridges
Oval filter cartridges are used in a variety of industrial dust collection systems where a high filtration area is required within a compact collector configuration.
The oval design is commonly found in applications such as:
- Metal fabrication
- Welding and cutting
- Grinding
- Machining
- Powder handling
- General industrial dust collection
- Fine particulate applications
Different cartridge dimensions and media configurations may be available depending on the dust collector and application.
A typical oval cartridge configuration may be approximately 289 × 365 mm and 660 mm in length, but dimensions can vary between applications and equipment models.
For replacement applications, it is important to verify the actual cartridge dimensions, end-cap configuration, gasket arrangement, and mounting method before ordering.

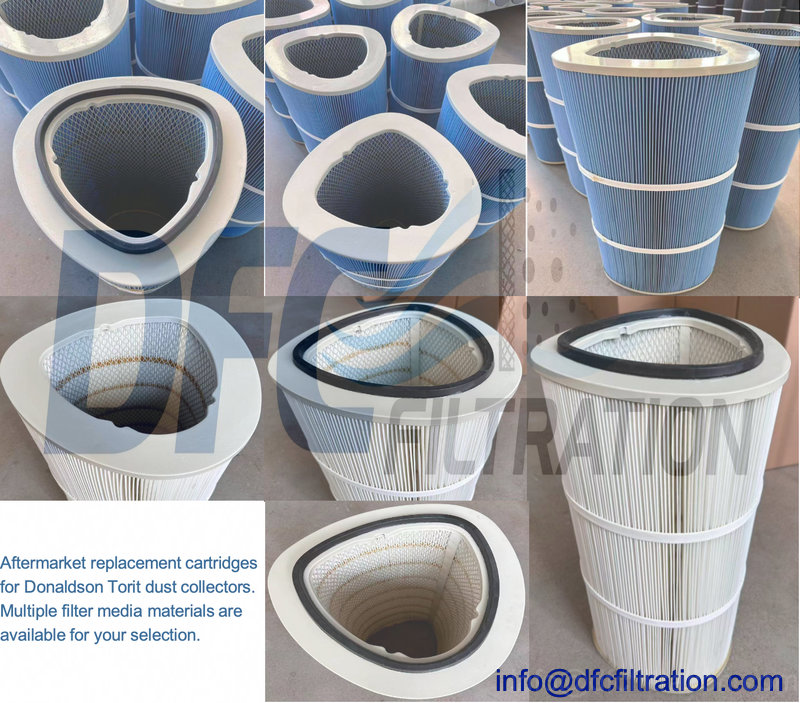

Triangular Filter Cartridges
Not every dust collector uses a round or oval filter cartridge.
Triangular filter cartridges are used in selected industrial dust collection systems where the collector design requires a non-cylindrical filter element.
Because the geometry is different from conventional cylindrical cartridges, replacement selection should consider more than the overall shape.
Important specifications may include:
- Overall dimensions
- Cartridge length
- Pleat configuration
- Top and bottom configuration
- Gasket or sealing arrangement
- Mounting configuration
- Filter media
- Filtration area
- Operating conditions
For replacement applications, photographs and dimensional information from the existing filter can be very helpful in identifying the appropriate configuration.
DFC Filtration can review the available information and provide a replacement solution based on the required application and installation configuration.
Square and Special Configurations
Industrial dust collectors may also use square, rectangular, or other specially configured filter cartridges.
These filters can have different end-cap designs, sealing arrangements, mounting systems, and filtration media.
For this reason, replacement cartridges should be selected based on the complete filter configuration rather than simply matching the outside dimensions.
If the original part number is unavailable, measurements and photographs can often provide enough information to begin the replacement evaluation.
Filter Media Options
Selecting the right filter media is just as important as selecting the correct cartridge configuration.
Depending on the application, DFC Filtration can provide different media options, including:
Nanofiber Media
Nanofiber media can provide fine particulate filtration and good surface dust release characteristics. It can be considered for applications where fine dust collection and stable airflow are important.
PTFE Membrane Media
PTFE membrane media can be used for applications requiring high-efficiency surface filtration of fine particulate.
Spunbond Polyester
Spunbond polyester is a durable synthetic filter media commonly used in industrial dust collection applications.
Conductive and Antistatic Media
Conductive or antistatic media may be considered for applications involving electrostatic sensitivity or combustible dust, subject to the specific application and required safety evaluation.
Flame-Retardant Media
Flame-retardant media may be suitable for applications where sparks, hot particles, or elevated fire risks need to be considered.
High-Temperature Media
For elevated-temperature applications, specialized synthetic or membrane media can be selected according to the actual operating temperature and process conditions.
The appropriate media depends on the dust characteristics, temperature, humidity, cleaning system, chemical exposure, and other operating conditions.
Choosing the Right Replacement Cartridge
A replacement cartridge should provide the required filtration performance while fitting the dust collector correctly.
Before selecting a replacement, consider:
1. Original filter part number
2. Dust collector manufacturer and model
3. Outside and inside dimensions
4. Overall filter length
5. Cartridge shape
6. Top and bottom configuration
7. Gasket type and location
8. Filter media
9. Dust
